ENDLESS CONFIGURATIONS
This steadicam is extremely versatile, the sled can be configured for any camera on the market including Arri, Black Magic, Red, sony Venice, you name it
It is, strong, rigid, and lightweight.
The modular design can be easily modified, upgraded, and maintained.
our exchandable post can help you switch to 1.75" and adapt accesories like the Steadicam volt, or stay with the 2" post to use cyclo, omega or most remote heads.
universal dovetail receiver
Our revolutionary system redefines the camera rigging by offering attachment for most dovetails in the market, including standard ARRI plates, or steadicam plates like GPI, XCS, Betz, SmartSystem, Tiffen Steadicam M2, and more.
With our TopStage, versatility and compatibility are at your fingertips.
Experience ultimate control and stability with our regulation for/aft and side-by-side
Our design features regulation for/aft and side-by-side controllers, allowing you to effortlessly adjust weight distribution for perfect dynamic balance, ensuring smooth and stable shots. Experience vibration-free operation.
LOW PROFILE TOPSTAGE
Our innovative low profile DESIGN that shortens the distance from the dovetail to the gimbal, enhancing overall performance."

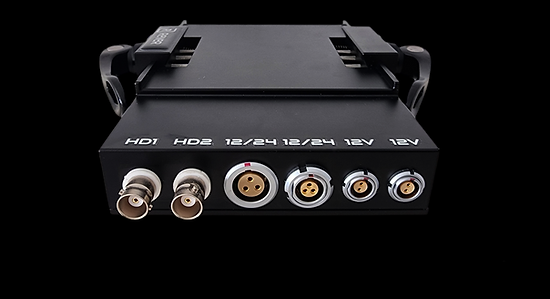

Build In Electronics
.png)
Main power outputs:
- 1x Lemo 2B 3-pin 12V/24V (Main Camera Power)
Accessory Power Outputs:
-1x Lemo 1B 3-pin (12V/24V)
-2x Lemo 0B 2-pin (12V)
Video Input:
- 2x 12G HD-SDI
TOPSTAGE ROTATES
Allowing the use of the electronics in the front or the back.
"Made in aluminum 7075 with the highest tolerance manufactured on a 5-axis CNC machine, our Gimbal features hybrid Swiss bearings made with dry ceramic balls and stainless steel, ensuring a friction-free experience. The Gimbal is super smooth, perfectly centered, and
play-free, with a Large knurled grip
and tool-free clamp mechanism smartly positioned to not interfere with the operator's hand placement."
GIMBAL MAXIMUN PRECISION
180 DEGREES
SWIVEL
The Rossette system allows for the monitor and batteries to swivel and rotate 180 degrees with a secure lock, ensuring a stable and vibration-free experience.
To enhance panning inertia, the telescopic rods can be extended, and the center battery can be adjusted back and forth. Moreover, mounting the rods sideways can assist in balancing the weight distribution in all axes.
High-Capacity System Power Supply
This is a high-capacity power supply system that can operate 12 or 24 volts. The power modules can be configured to run at 12 volts with 2 or 3 hot-swappable batteries.
24V Operation (Series Power):
-
24V output is achieved by connecting two 12V batteries in series.
-
One battery must be placed in the dedicated 24V slot, and the second battery can be placed in any other available slot.
2X DOUBLE BATTERIES MODULE
The Evo has the capability to mount two POWER MODULES at the same time, with one on the front and one on the back. Additionally, the center single battery plate can be effortlessly removed to accommodate a pendulum.
Interchangeable 2 to 1.75" Carbon Fiber Post
The ultimate solution for versatile camera stabilization. Easily switch from a 2-inch post to 1.75 inches in just 30 minutes, offering you unparalleled flexibility on your rig
Rever's innovative design features a 50mm wide, 2-section carbon fiber post, delivering maximum rigidity and stability for seamless shooting experiences. Extendable up to 120 cm, it's perfect for smooth transitions between high mode and low mode.
Additionally, you have the option to order the sled with our new 1.75-inch post, specifically designed to fit the Steadicam M2 gimbal with the Steadicam Volt kit, ensuring compatibility with this accesory.
Get an additional 1.75 or 2 inches Post and relace it in 30 minutes with basic mechanic knoleage
Find the perfect center of gravity of the monitor with the side to side adjustment.
fits almost every monitor with side screws from 5 to 8 inches.
the bracket can be adjusted without any tool
can be place on the center and Lower post
but also can be attach on our standard 19mm battery rods.
MONITOR MOUNT
